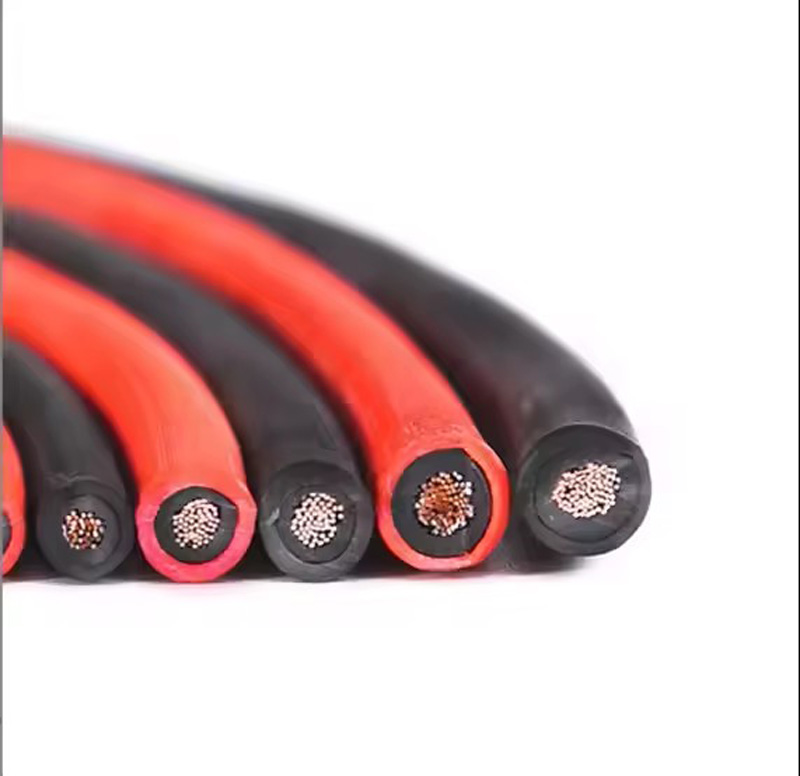

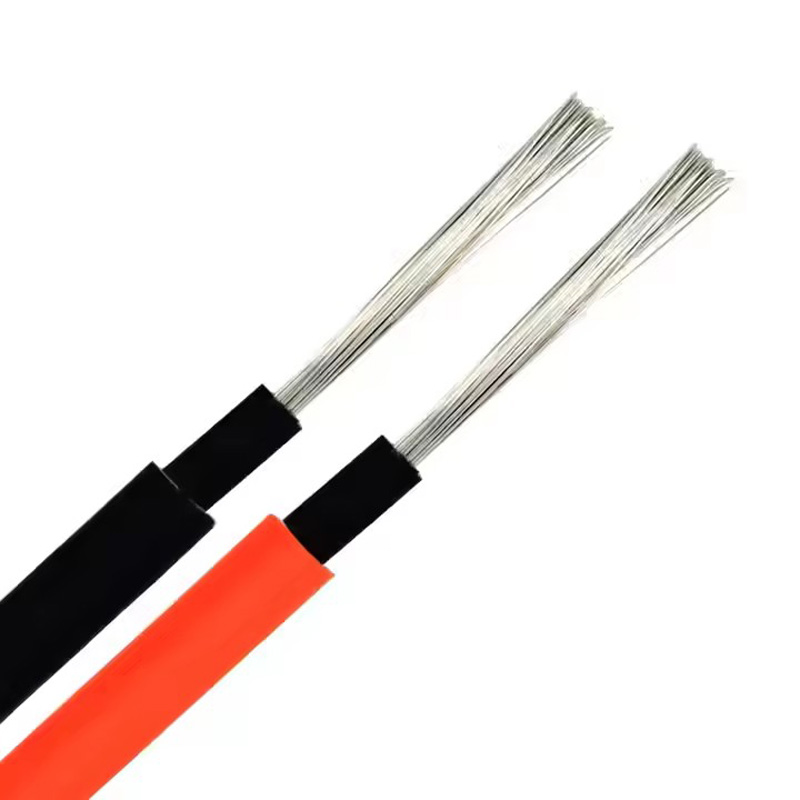

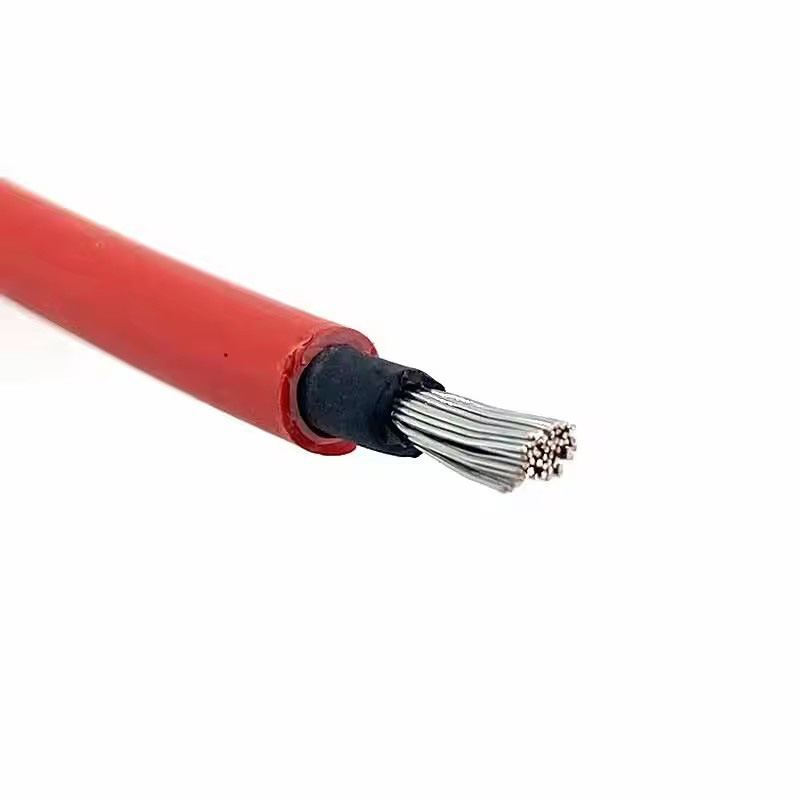

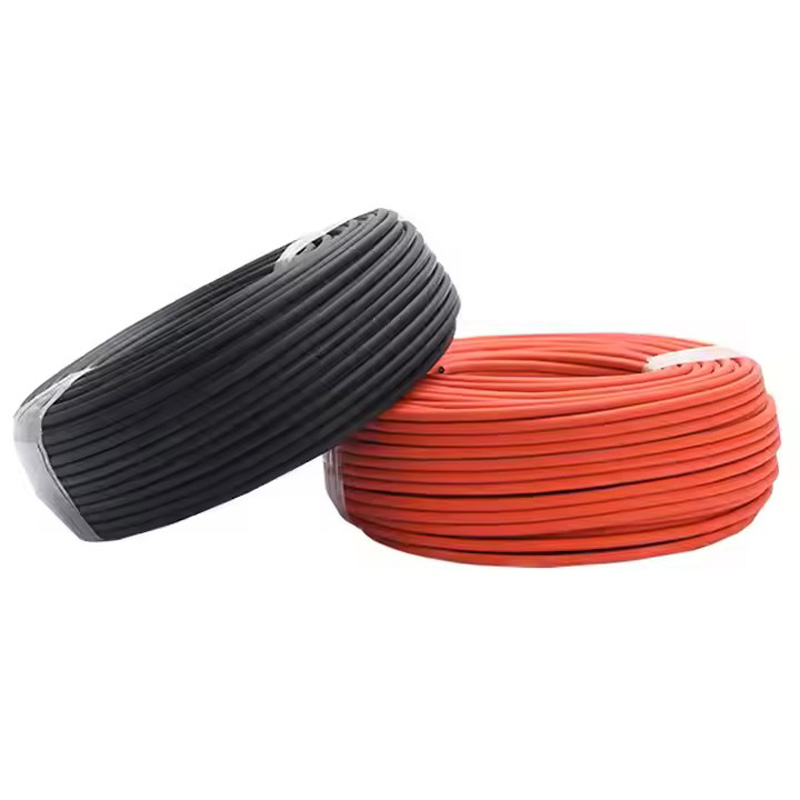

PV Solar Cable (Photovoltaic Cable) — Professional Cable by HUADA
Premium photovoltaic (PV) cable engineered for solar energy systems. Tinned copper Class 5 flexible conductor with electron beam cross-linked XLPE LSZH insulation. Rated DC 1.8kV, operating temperature -40°C to +90°C (120°C short-term). UV, ozone and weather resistant with 25+ year service life matching PV module warranties. TÜV, CE and IEC 62930 certified.
Technical Specifications
Voltage: DC 1.8kV / AC 0.6/1kV | Conductor: Tinned Copper (Class 5, Flexible) | Insulation: XLPE LSZH (Electron Beam Cross-linked) | Sheath: TPE/PVC (Flame-Retardant) | Cross-section: 1.5-35mm² | Temp: -40°C to +90°C (120°C short-term) | Flame: UL94 V-0 / IEC 60332-1-2 | 25+ Year Service Life
Key Features & Benefits
- 25+ Year Outdoor Life: XLPE LSZH insulation passes 3000-hour UV aging test without cracking — matches PV module warranty period
- Extreme Temperature Range: Stable operation from -40°C (arctic) to +120°C (desert) — no performance degradation in any climate
- Global Certifications: TÜV, CE, IEC 62930 certified — smooth customs clearance and compliance with all major markets
- Low Power Loss ≤3%: High-conductivity tinned copper conductor with ≤0.0172Ω·mm²/m resistance ensures efficient energy transmission
- Proven Worldwide: Deployed in 10,000+ solar projects globally with zero failure records in 5 years of field performance
Typical Applications
Solar panel module-to-module connections | PV array to combiner box wiring | Combiner box to inverter transmission | DC side energy storage system interconnection | Outdoor exposed wiring in all climates
Why Choose HUADA CABLE?
Founded in 1988, HUADA CABLE has been dedicated to cable manufacturing for 37+ years. Our advanced workshops feature automated production lines and comprehensive testing equipment monitoring quality throughout every production stage. We adhere to the core belief of “Dedicating Ourselves to Cable Production and Pursuing Excellence in Quality.”
- Factory Direct: No intermediaries — competitive pricing straight from our production line
- 37 Years of Expertise: Proven track record since 1988 with continuous R&D investment
- Global Certifications: ISO9001, CE, CCC, RoHS — compliant with international standards
- Quality Assurance: 100% factory testing — conductor resistance, voltage withstand, insulation integrity
- Worldwide Export: Products exported to 30+ countries with professional export documentation and logistics support
- Technical Support: Dedicated engineering team provides pre-sales consultation and after-sales service
Contact us today for a customized quotation, technical datasheet, or sample request. Bulk orders and OEM/ODM inquiries are welcome.
