NA2XS2Y Single-Core Medium-Voltage Power Cable
For independent website / product page (English-oriented, suitable for international tender, Europe, America & EEU Ethiopia project) Standard：DIN VDE 0276-620 | HD 620 S1 | IEC 60502-2

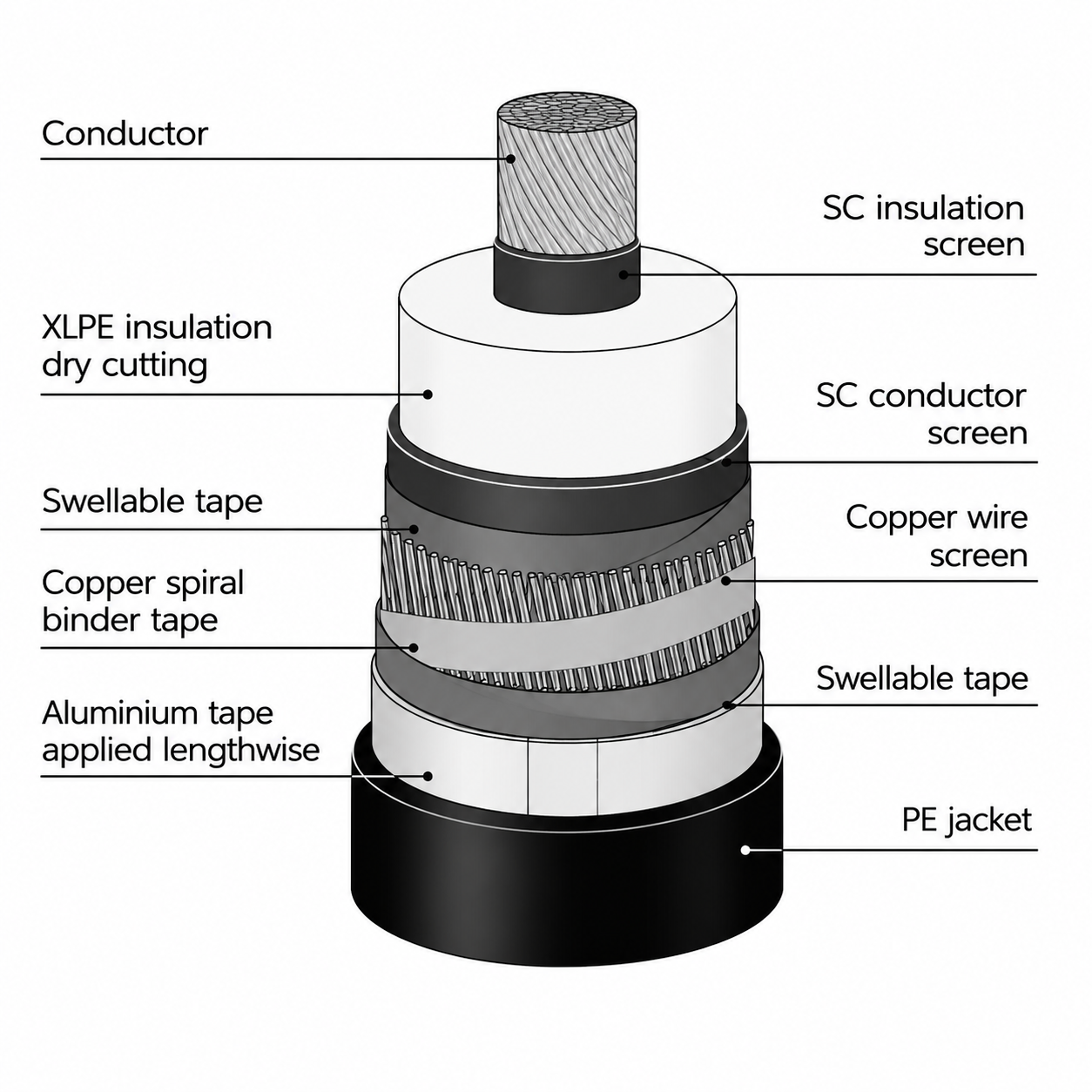

Cable construction

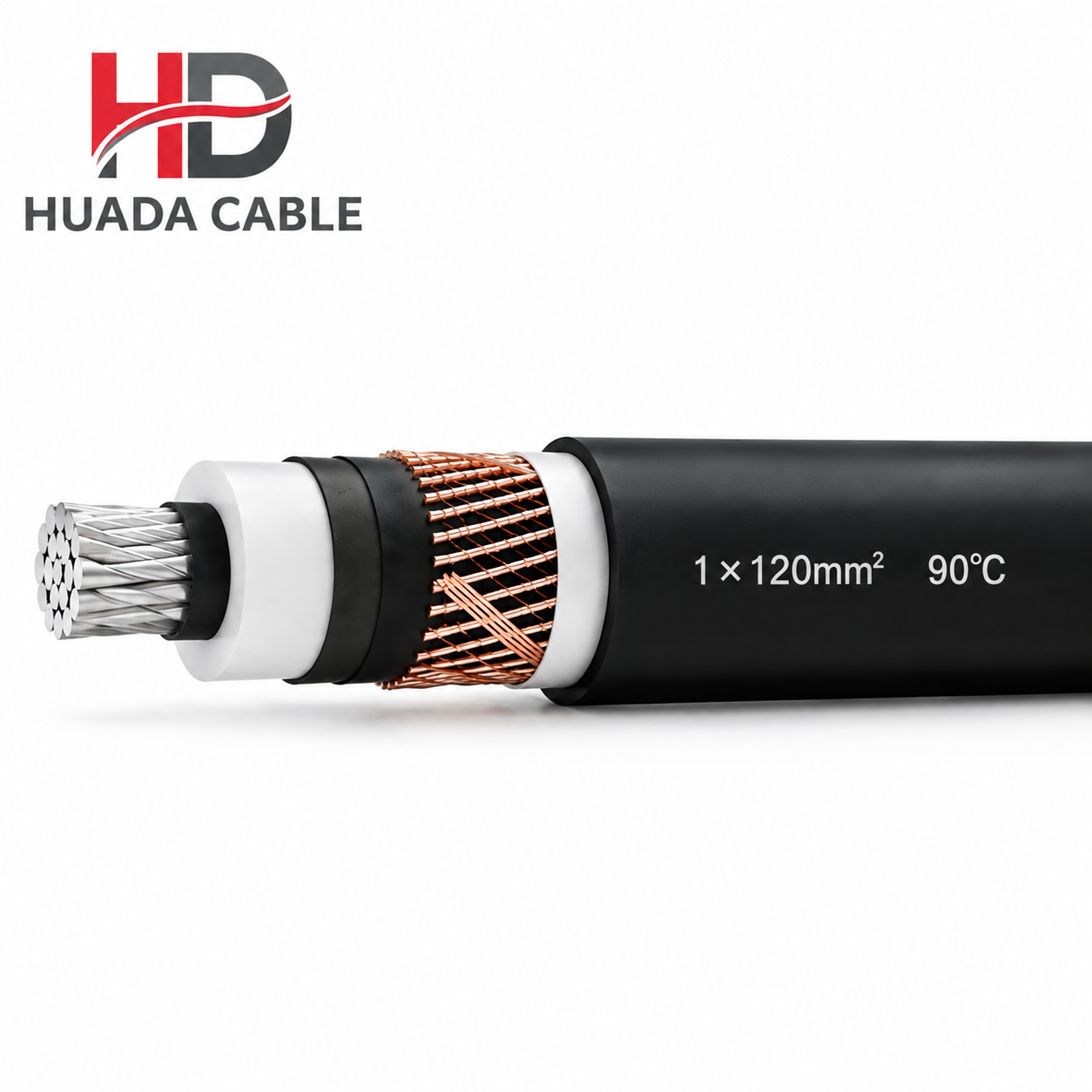

NA2XS2Y: Single-core aluminium conductor, XLPE insulated, copper-wire-plus-copper-tape metallic screen, black HD-PE outer-sheath medium-voltage underground power cable (non-water-blocked version).
N = VDE German standard
A = Aluminium conductor
2X = XLPE cross-linked polyethylene insulation
S = Copper wires + counter-wound copper tape metallic screen
2Y = Black high-density polyethylene (HD-PE) outer sheath, UV-resistant, suitable for direct burial, outdoor, cable duct, indoor fixed installation, not for overhead use
SPECIFICATION:
| Item | Parameter |
|---|---|
| Rated voltage U₀/U (Um) | 6/10 kV (12 kV); 12/20 kV (24 kV); 18/30 kV (36 kV) |
| Max continuous conductor operating temperature | +90 °C |
| Short-circuit conductor temperature (≤5 s) | +250 °C |
| Minimum installation ambient temperature | −20 °C |
| Minimum bending radius (installation) | 15 × overall cable outer diameter |
| Partial discharge test | ≤ 2 pC at specified test voltage |
| Outer sheath | Black HD-PE, UV resistant, non-armoured |
| Installation scenario | Direct-buried soil, cable duct, tunnel, indoor & outdoor fixed laying |
Factory Acceptance Test (FAT): Routine tests comply with VDE 0276-620: DC resistance of aluminium conductor, copper screen DC resistance, partial discharge, power-frequency withstand voltage, sheath integrity test.
Main Electrical & Mechanical Data Table — NA2XS2Y (12/20 kV, RM Class-2 Aluminium Conductor)
Swipe the table horizontally on smaller screens to view all columns.
| Cable size1×Al mm² / Screen mm² | Max. Conductor DC Resistance @20°C(Ω/km) | Approx. Outer Diameter(mm) | Approx. Cable Weight(kg/km) |
|---|---|---|---|
| 1×35 RM/16 | 0.868 | 25 | 620 |
| 1×50 RM/16 | 0.641 | 26 | 710 |
| 1×70 RM/16 | 0.443 | 28 | 860 |
| 1×95 RM/16 | 0.320 | 30 | 1 030 |
| 1×120 RM/16 | 0.253 | 32 | 1 190 |
| 1×150 RM/25 | 0.206 | 34 | 1 380 |
| 1×185 RM/25 | 0.164 | 36 | 1 610 |
| 1×240 RM/25 | 0.125 | 39 | 1 940 |
| 1×300 RM/25 | 0.100 | 42 | 2 330 |
| 1×400 RM/35 | 0.0778 | 46 | 2 870 |
Note: For 6/10 kV /18/30 kV versions: insulation thickness changes; OD & weight will differ, please request our full datasheet.
