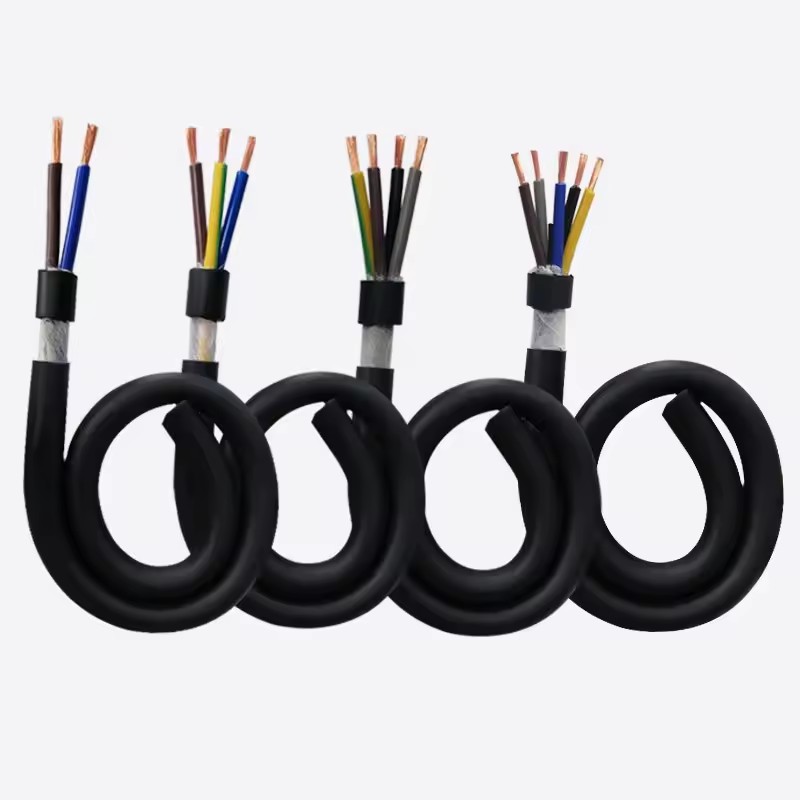

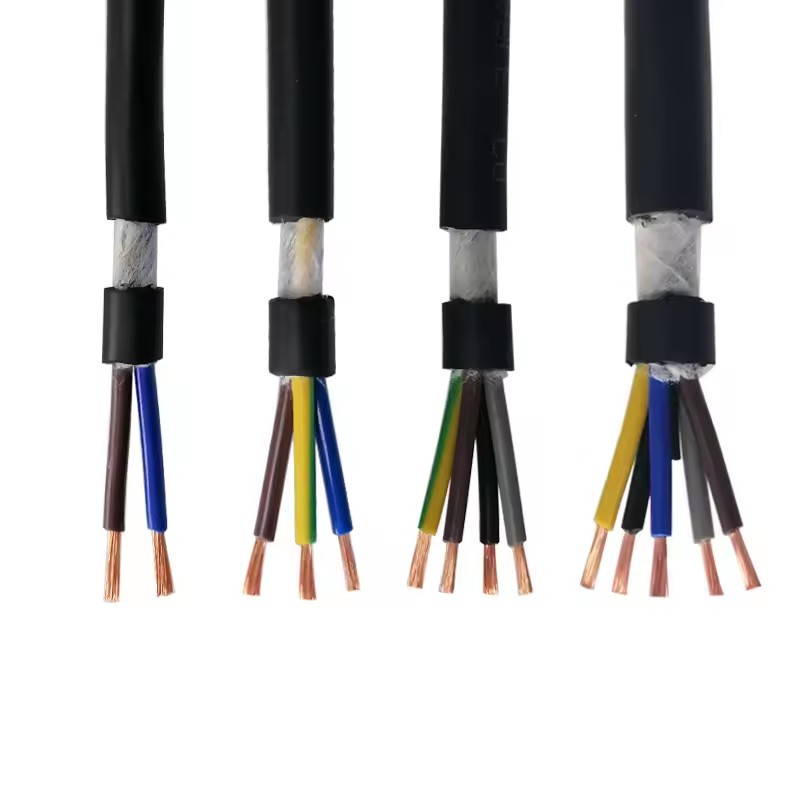

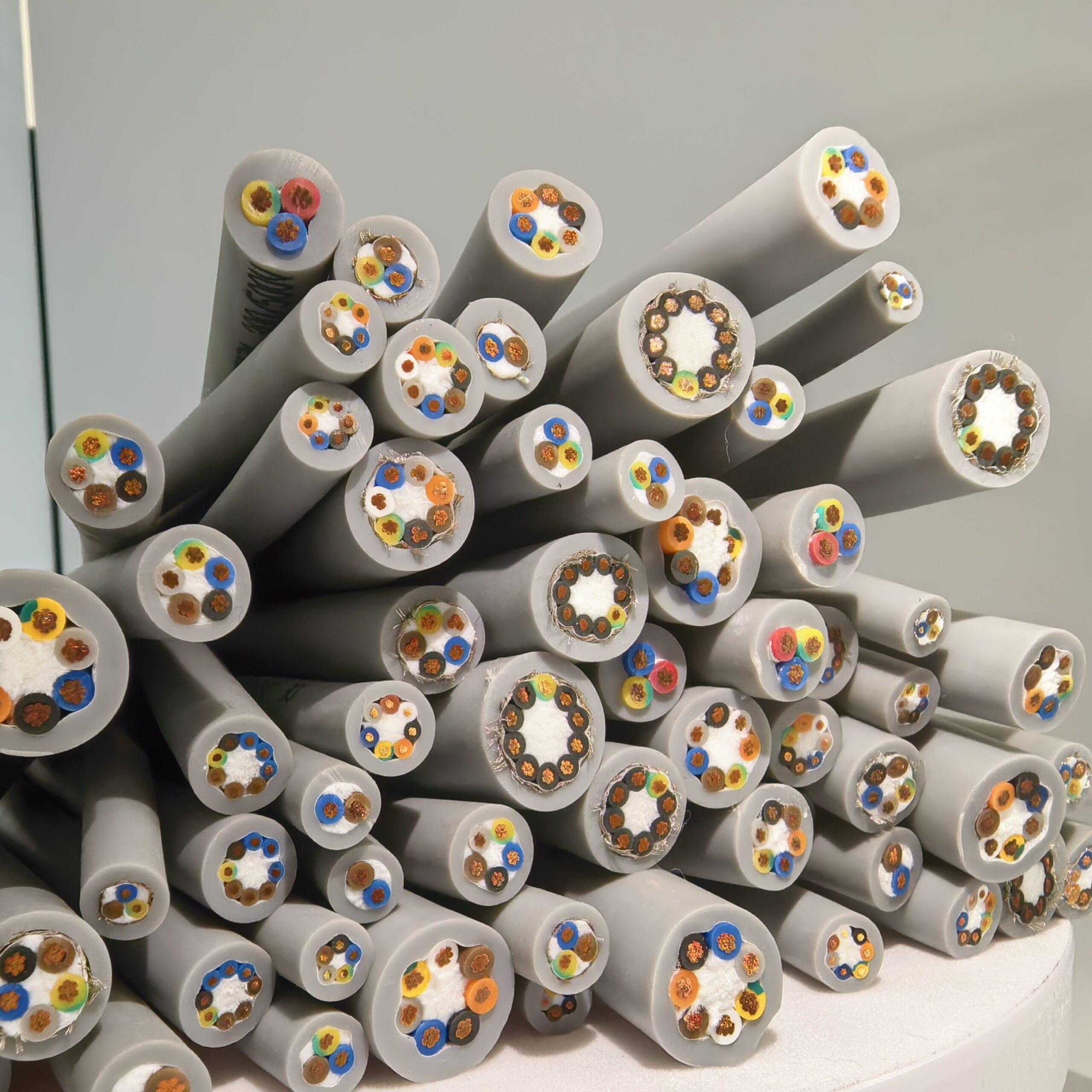

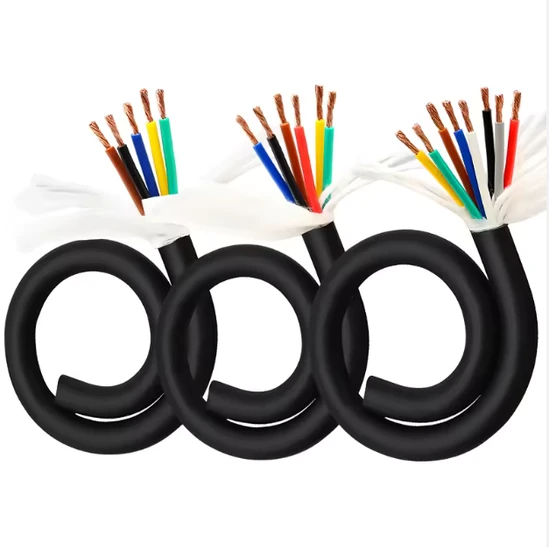

Drag Chain Cable (Tank Chain Cable) — Professional Cable by HUADA
Premium drag chain (energy chain) cable engineered for continuous flexing in cable carriers. Multi-stranded fine wire construction in PUR or PVC, rated for over 5 million bending cycles. Available in 1-60 cores at 300/300V to 0.6/1kV. The definitive choice for CNC machines, industrial robots, conveyor systems and automated machinery.
Technical Specifications
Voltage: 300/300V, 300/500V, 0.6/1kV | Conductor: Multi-stranded Fine Wire | Cores: 1-60 | Insulation/Sheath: PVC or PUR | Bending: 5M+ Cycles | Min Bend Radius: 5-10× cable OD | Temp: -30°C to +70°C (Fixed) / -5°C to +70°C (Mobile)
Key Features & Benefits
- 5 Million+ Bend Cycles: Tested and rated for extreme flexing endurance — outlasts standard cables in dynamic applications
- PUR Sheath Option: Polyurethane sheath offers superior abrasion, oil and chemical resistance for harsh industrial environments
- High Core Density: Up to 60 cores in compact design — carries power, signal and data in a single drag chain cable
- Controlled Bend Radius: Engineered minimum bend radius of 5-10× cable diameter ensures reliable performance in cable carriers
Typical Applications
CNC machine tools | Industrial robots & robotic arms | Logistics conveyor systems | Hoisting & lifting machinery | Automated production equipment
Why Choose HUADA CABLE?
Founded in 1988, HUADA CABLE has been dedicated to cable manufacturing for 37+ years. Our advanced workshops feature automated production lines and comprehensive testing equipment monitoring quality throughout every production stage. We adhere to the core belief of “Dedicating Ourselves to Cable Production and Pursuing Excellence in Quality.”
- Factory Direct: No intermediaries — competitive pricing straight from our production line
- 37 Years of Expertise: Proven track record since 1988 with continuous R&D investment
- Global Certifications: ISO9001, CE, CCC, RoHS — compliant with international standards
- Quality Assurance: 100% factory testing — conductor resistance, voltage withstand, insulation integrity
- Worldwide Export: Products exported to 30+ countries with professional export documentation and logistics support
- Technical Support: Dedicated engineering team provides pre-sales consultation and after-sales service
Contact us today for a customized quotation, technical datasheet, or sample request. Bulk orders and OEM/ODM inquiries are welcome.
